XGRIDS unveils the Lixel L3 spatial scanner with validated 5 mm accuracy, LiDAR, 4K HDR vision, RTK, SLAM and field-ready 3D capture.
Continue readingThe new XGRIDS Lixel L3 is here!

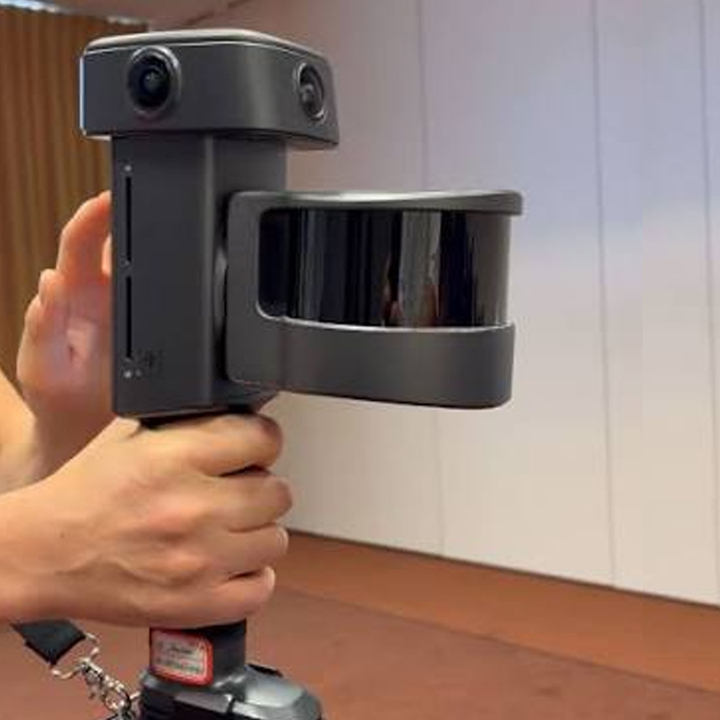

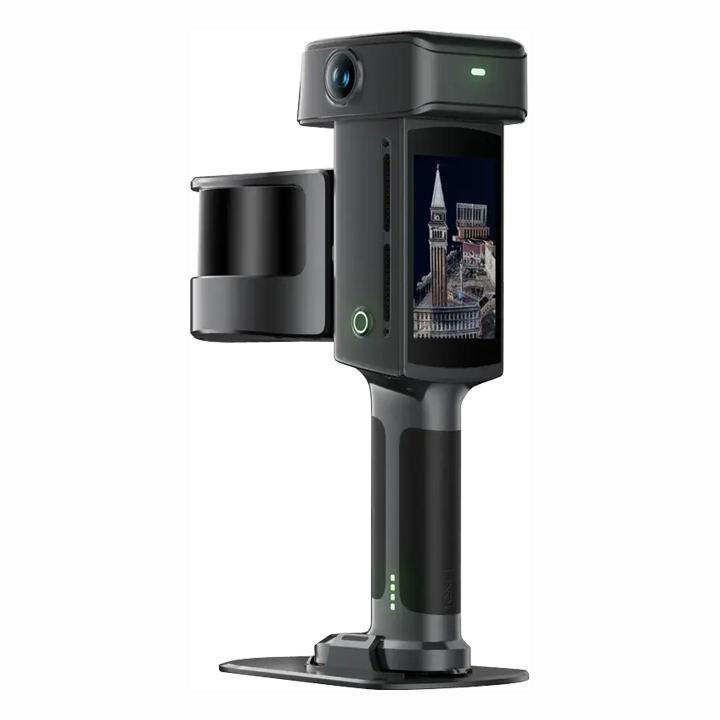

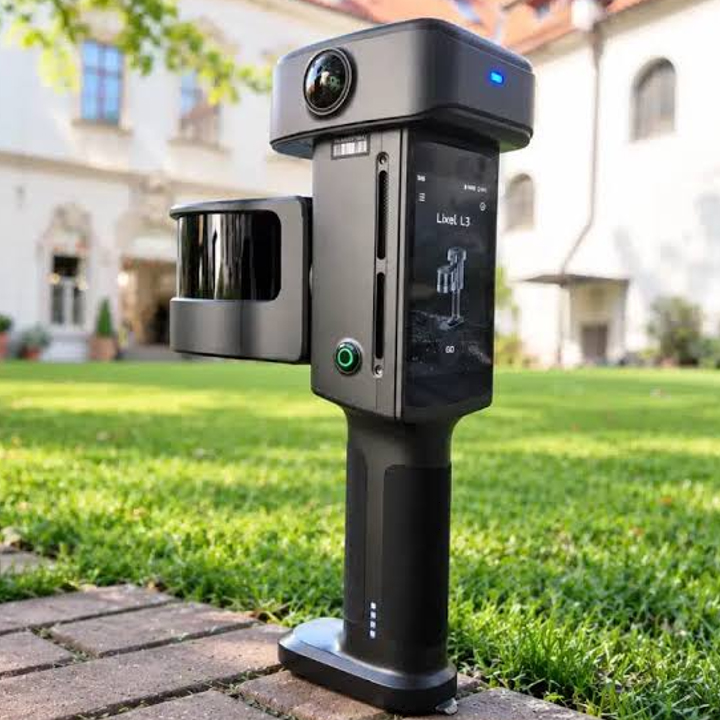

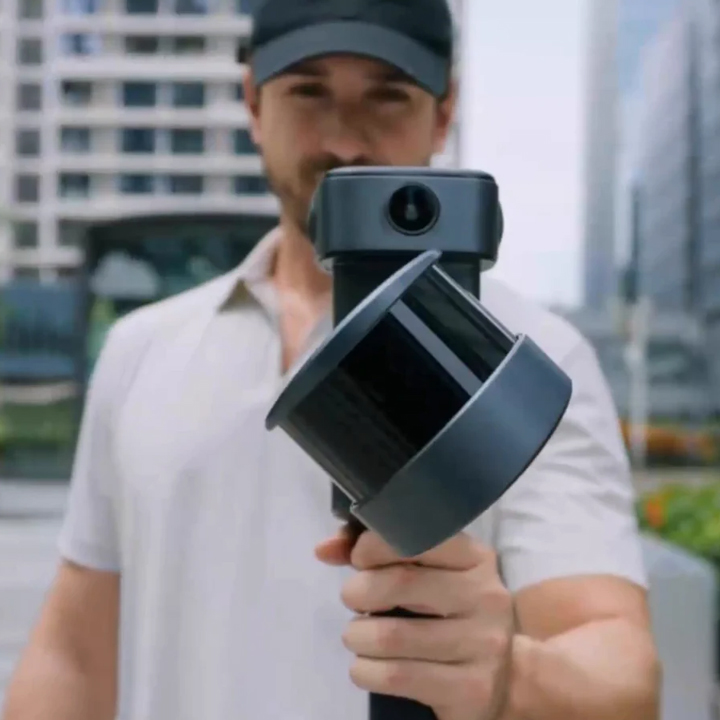

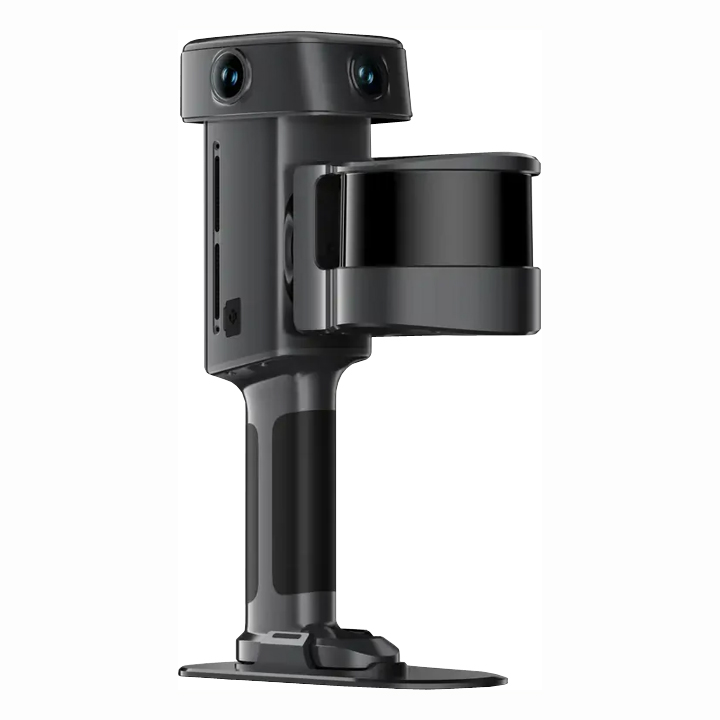

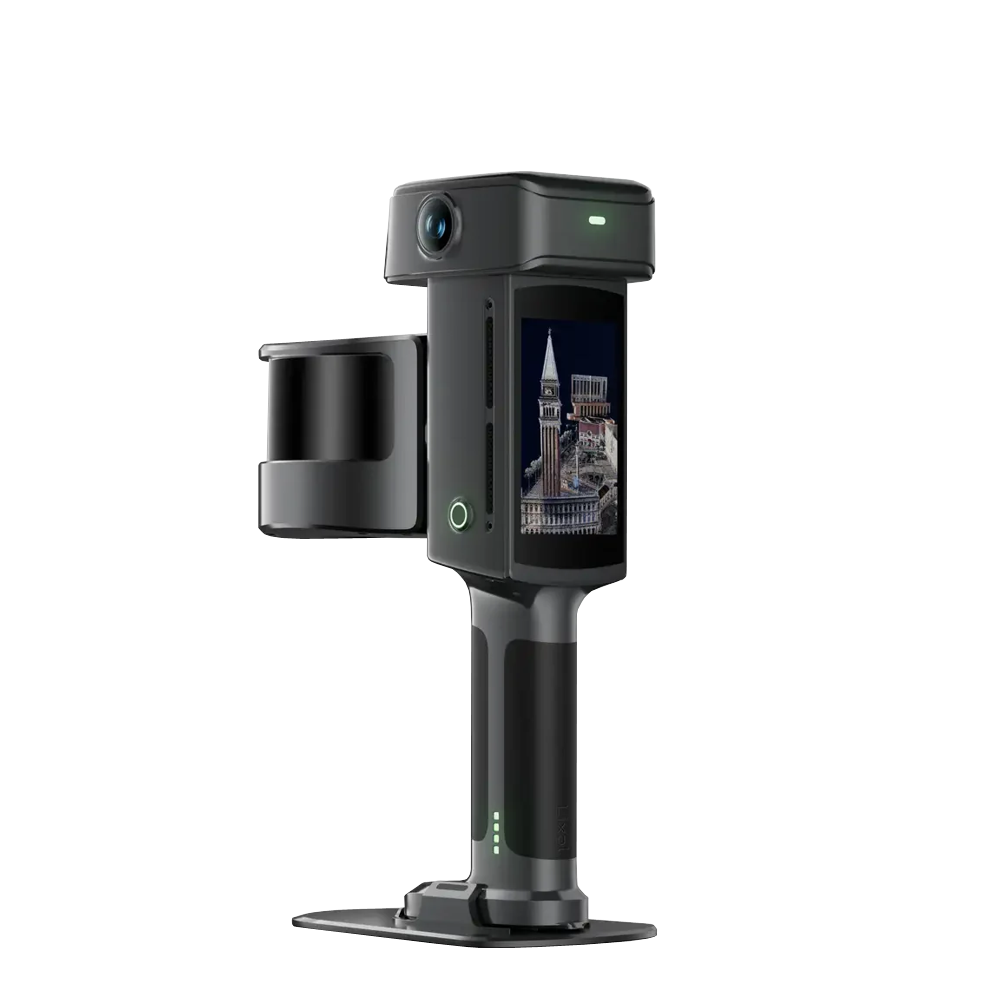

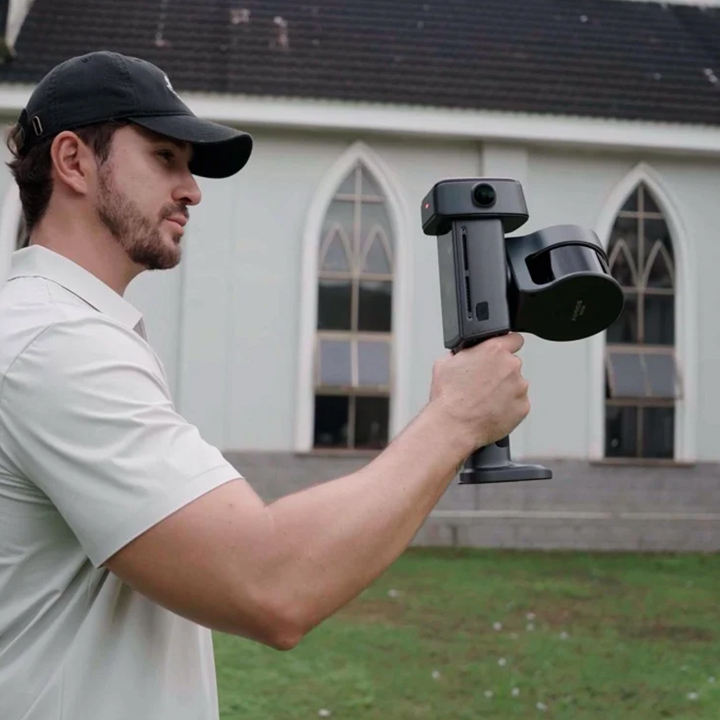

XGRIDS Lixel L3
Lixel L3
Handheld LiDAR Scanning System
Accuracy Meets Photorealism
The Lixel L3 is a flagship high-accuracy spatial scanner. It holds a verified 5mm relative accuracy and photorealistic colour across large, complex sites.
A single pass with the Lixel L3 produces a true-colour point cloud, a mesh and a 3D Gaussian Splatting model — supporting precise measurement and true-to-life presentation alike. Deliverables fit directly into workflows across surveying and AEC, digital twin and film and entertainment – the real world rebuilt in digital space.
Precision Sensing, Integrated in One Instrument
The L3 fuses a high-accuracy LiDAR, a true-color vision system, an integrated RTK, and a built-in display into one unit: geometry, color, positioning, and delivery, in a single pass.

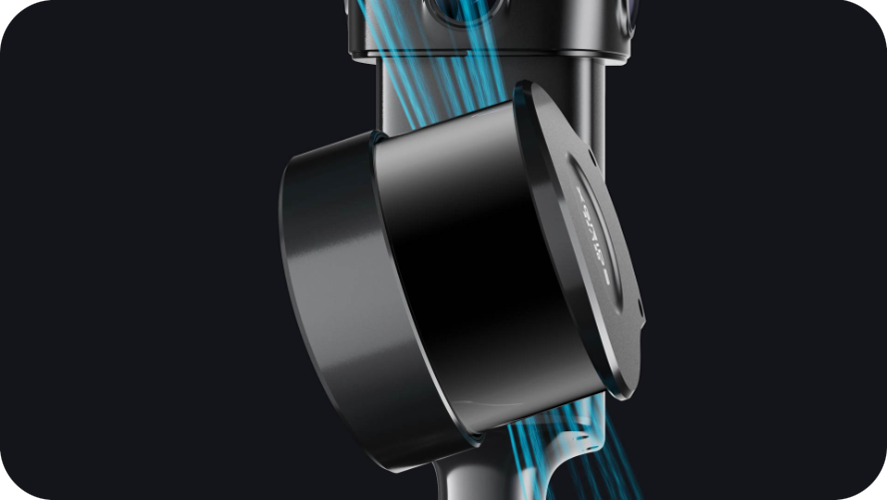

LiDAR
High-Precision LiDAR
12m Maximum Range
Up to 640,000 pts/s
Vision
Photorealistic True Colour Vision
1/1.3" CMOS
4K HDR

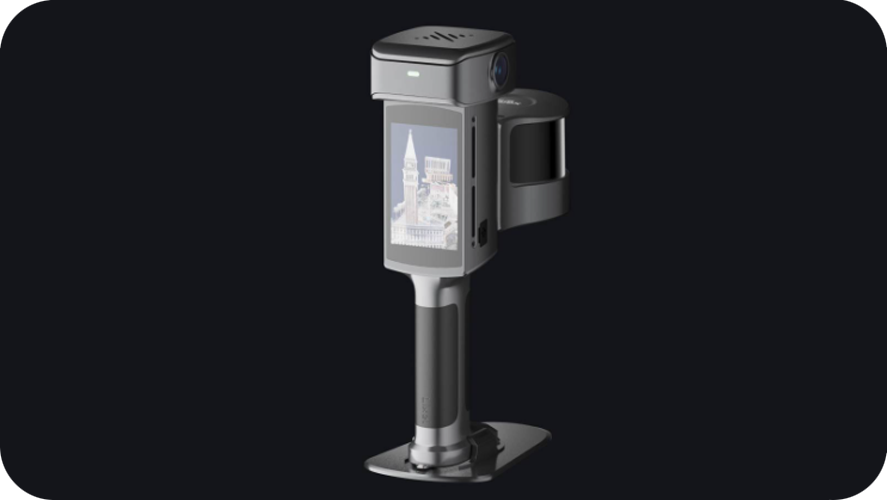

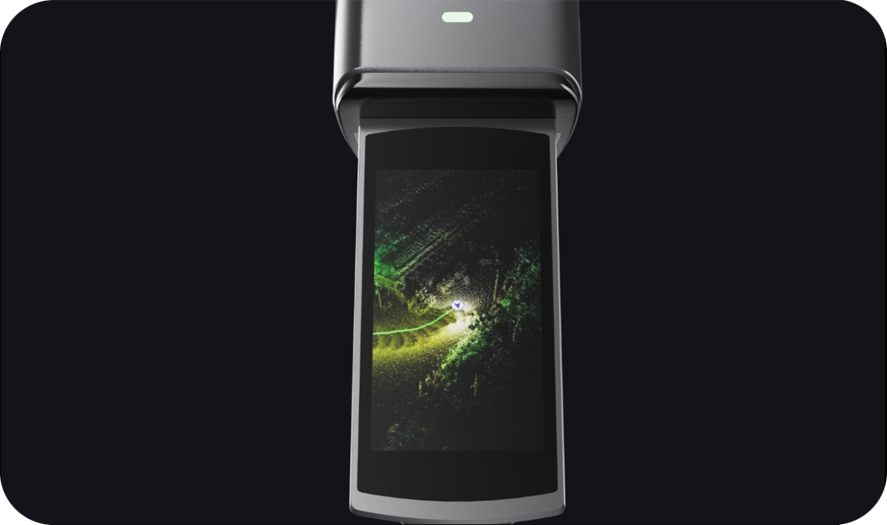

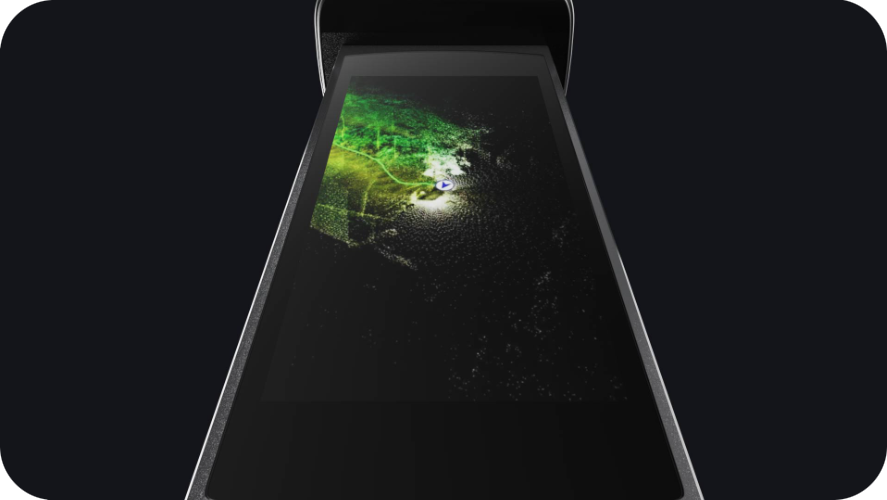

Display
Integrated High-Brightness Display
4.3" Built-in Screen
1,000 nit Peak Brightness
Scan Assistance system

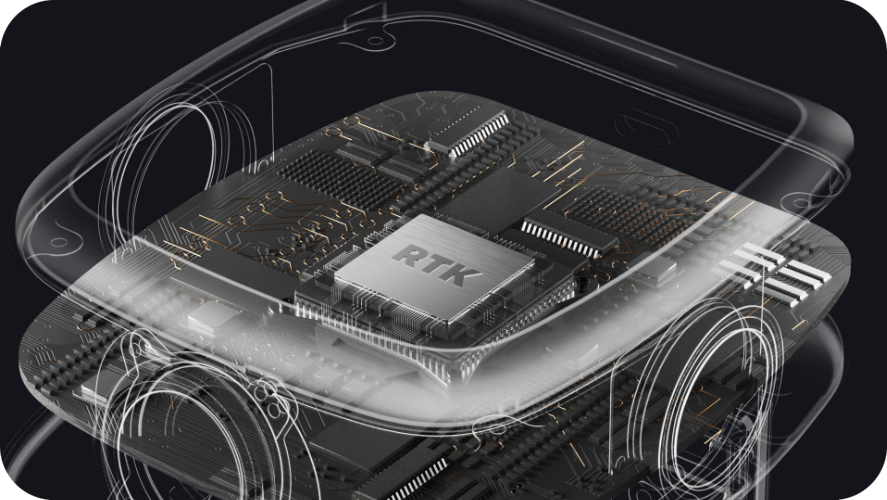

RTK
Integrated Survey-Grade RTK
Multi-frequency GNSS
Hor Acc: 8mm + 1ppm
Vert Acc: 15mm + 1ppm
4.0 dBi Maximum Gain
IMU
High-Precision IMU
0.02° Levelling (no RTK)
0.005° Levelling (RTK)
Continuous sending of device attitude & motion

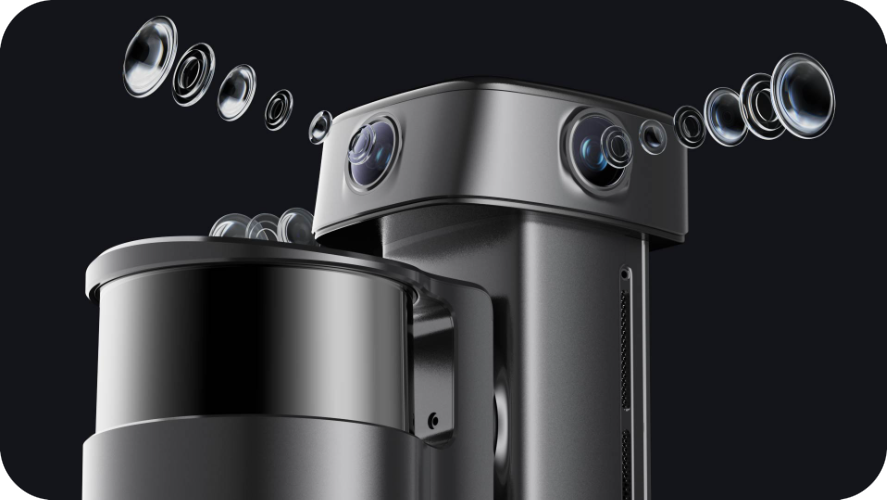

Photorealistic Colour, True to the Space
The L3’s true-colour vision system records colour, tonal range, and material detail with photographic fidelity. In low light and high contrast, where capture usually suffers, the output stays clear and identifiable.
Accurate Structure, True Colour
High-accuracy geometry and high-resolution imagery are fused, so the point cloud carries structure and colour at the same fidelity. Site conditions read at a glance, target objects are easier to identify, and measurement, modeling, and client review all work from the same data.
Highlights and Shadows, Equally Resolved
4K HDR imaging retains detail at both ends of the exposure range, so bright surfaces do not blow out and shadowed areas do not disappear. Tonal transitions stay natural across the scene.
Low Light, Still Legible
In low-light environments, the L3 produces point clouds with less noise and color shift. Less grain, fewer false colors, and a cleaner cloud going into processing.
Key Areas, Enhanced on Demand
Select specific areas for targeted enhancement, so critical zones keep more spatial detail while reconstruction time and file size stay under control.
Colour and Detail, Carried Through Every Deliverable
A single capture produces a high-accuracy true-color point cloud, a detailed mesh, and a photorealistic 3D Gaussian Splatting model from the same source data. Precise geometry, clean texture, and immersive realism each serve a different downstream job, so one field session empowers visualization, professional measurement, and digital twin work.
Mesh
High-quality imagery gives the mesh dense texture information, resolving material surfaces and structural lines clearly. A complete spatial base for professional modeling, asset records, and downstream 3D applications.
3D Gaussian Splatting
Built on XGRIDS’ upgraded Lixel CyberColor (LCC) technology, which carries real color, tonal range, and fine spatial detail into a photorealistic 3DGS model — for digital twins, previs, and virtual production that need to feel like the location.
True-Colour Point Cloud
Accurate geometry with natural site colour, so professional data is easier to read and faster to work with.
Complete Data, Whatever the Conditions
Across long continuous captures and through GNSS obstruction and weak texture, the L3 combines integrated RTK and multi-modal perception to keep modeling stable. Less drift, less layering, usable data from one site visit.
Urban Canyons
In dense built environments where satellite signal is blocked or reflected, the L3 keeps refining trajectory and positioning so large captures stay continuous, producing data with no misalignment, no layered floors, and an absolute accuracy of 5 cm.
Featureless and Repetitive Spaces
Where visual texture is thin, geometric features are missing, or structures repeat, positioning and mapping tend to accumulate error. L3’s stable SLAM algorithm keeps the point cloud continuous and the structure consistent, making underground and linear scenes easier to capture reliably.
Waterside Sites
Reflective water surfaces interfere with spatial solution. The L3 keeps refining the solution so bridge structures, shorelines, and surrounding geometry come through coherently, reducing data gaps and return visits on waterside projects.
Usable Point Clouds the Moment You Stop Scanning
Built on real-time Multi-SLAM processing, the L3 generates a high-quality true-color point cloud as you scan. Real-time vision-aided localization and dynamic object filtering keep the structure coherent and the data clean, ready for on-site measurement and project review the moment you stop.
Real-Time Vision-Aided Localization for Stable, Coherent Large Scenes
Real-time vision-aided localization and leveling optimization continuously correct capture trajectory and attitude, so large-scene point clouds stay level and structurally continuous. Drift and layering are minimized, reducing the cost of releveling, registering, and rescanning afterward.
AI identifies and filters people, vehicles, and environmental noise as you scan, cutting the smearing, ghosting, and redundant data that moving objects leave behind. The exported cloud needs less manual cleanup and reaches measurement, modeling, and delivery sooner.
Field Work, Made Steady
The L3 smooths out each step during the workday: on-screen guidance and hardware built for long days in the field, then flexible fusion and privacy handling in LixelStudio.

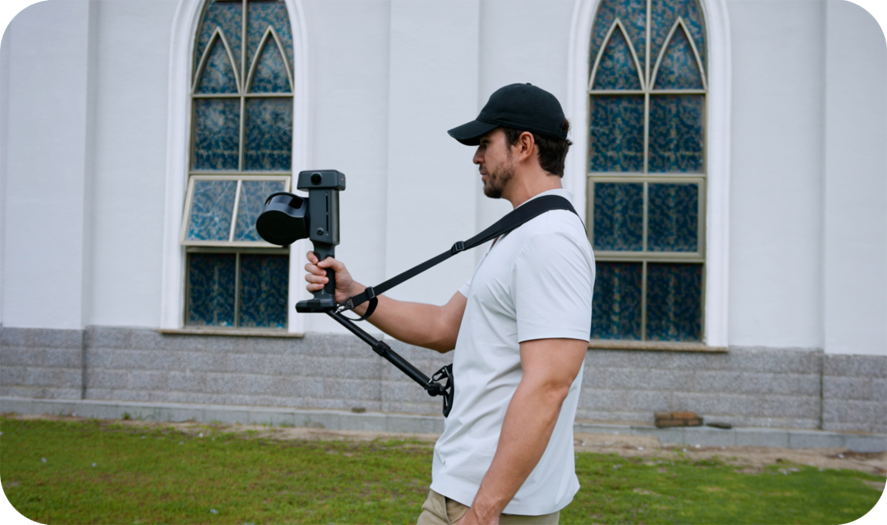

Support Rig
Long field days feel easier
Integrated On-Screen System
Full capture status on one display

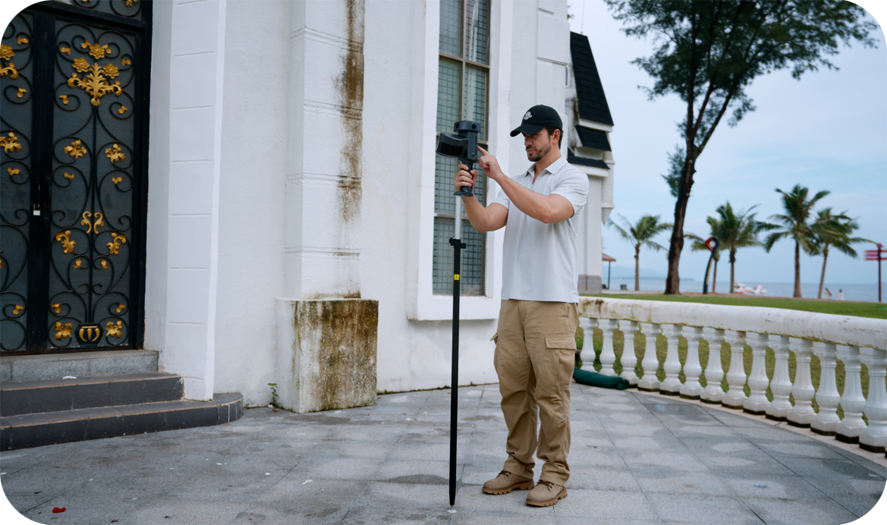

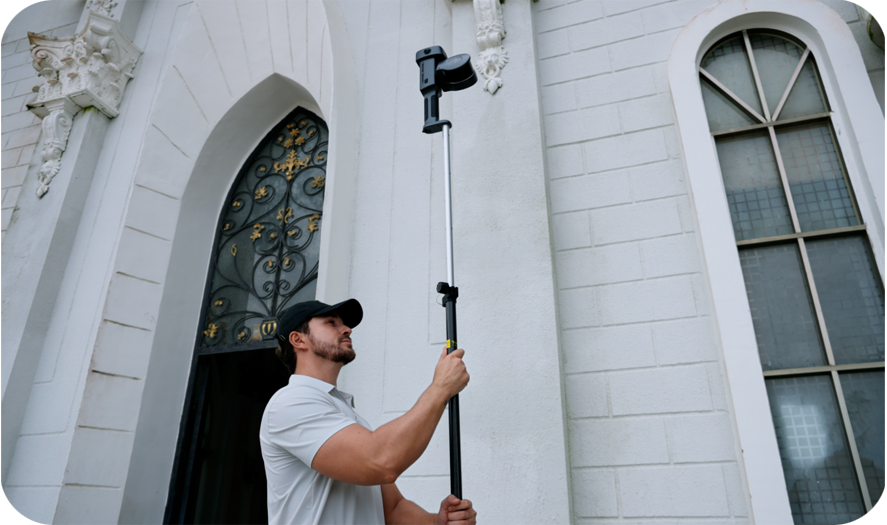

Standard RTK Pole Compatibility
Mounts to survey poles you already own
Control Point Collection
Mark points directly from the pole

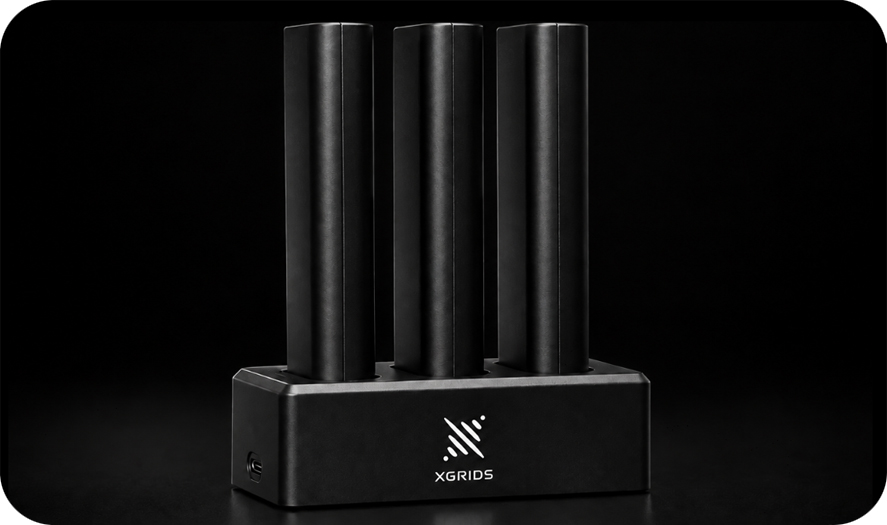

Quick-Swap Battery
Change packs in seconds for continuous capture throughout the day
Related media
Video
Images
Request more Info | Get a Quote
Please complete the form below to submit your quote request.
Quote Form
Introducing the NavVis VLX 4
The new NavVis VLX4 represents a breakthrough in Dynamic Reality Capture, Delivering Exceptional Detail at Speed.
Continue readingNavVis VLX 4

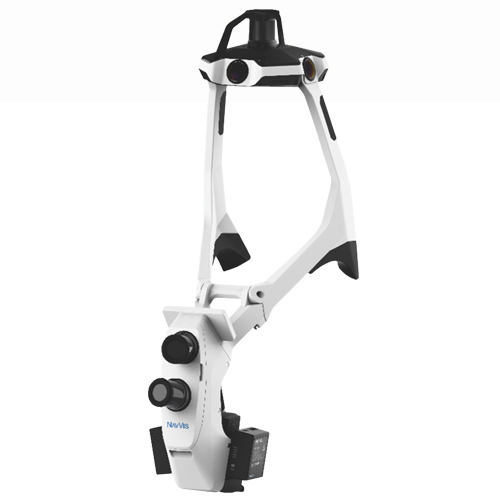

NavVis VLX 4
Mobile LiDAR Scanning System
Capture details in motion
NavVis VLX 4 is the first dynamic reality capture device built for projects that need high-detail data.
It combines dynamic scanning speed with true 3 mm point cloud resolution for demanding LOD350+ Scan-to-BIM, MEP and industrial applications.
Unique Benefits
Bring dynamic speed to high-detail projects
NavVis VLX 4 brings fine geometric detail to dynamic reality capture, enabling you to capture thin pipes, sharp edges, bolts, brackets and densely-packed technical environments while moving.
One investment. More opportunities
Take on higher-value engineering, industrial and high-detail reality capture projects with confidence. NavVis VLX 4 expands the range of services you can offer, helping you win more projects, reach new customers and grow your business with a single solution.
Scale your business, not complexity
Increase project capacity without increasing operational overhead. NavVis VLX 4 gives your team a repeatable, efficient workflow that makes it easier to deliver more projects as your business grows.

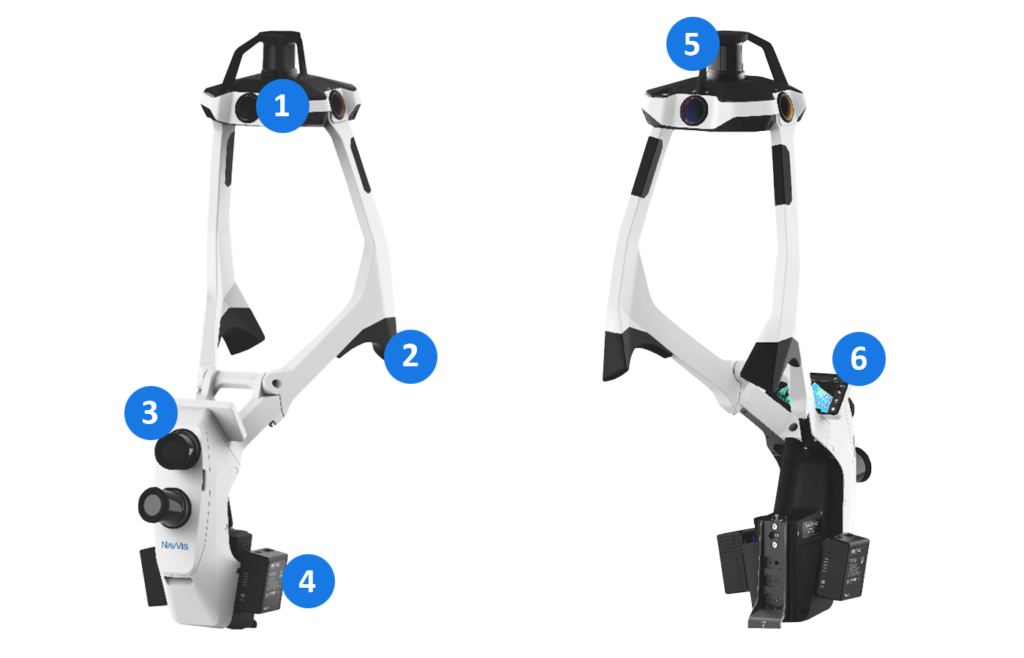

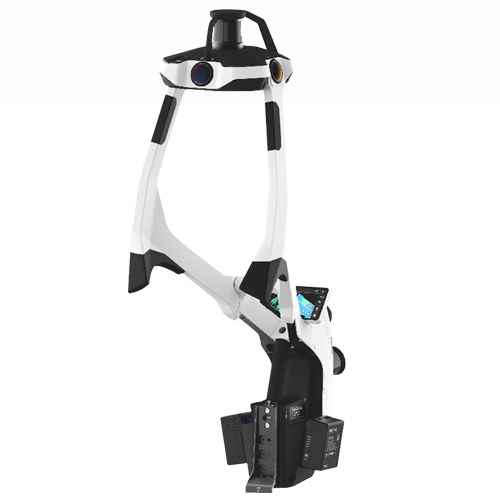

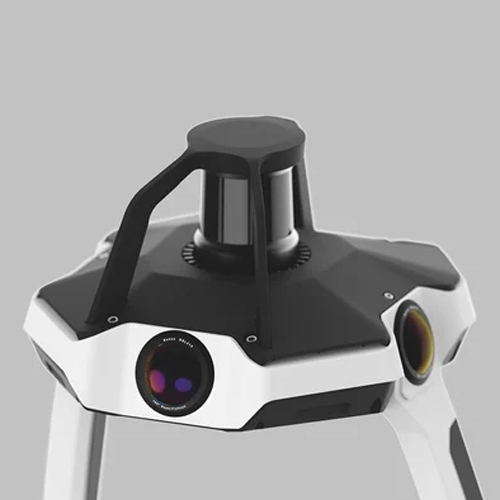

1. 4x 20MP cameras for panoramic images
2. Padded shoulder support
3. 2x High-precision vertical LiDAR sensors
4. 2x Li-ion 95Wh hot-swappable battery
5. Triple LiDAR architecture
6. Built-in screen for live feedback
NavVis VLX 4 Features

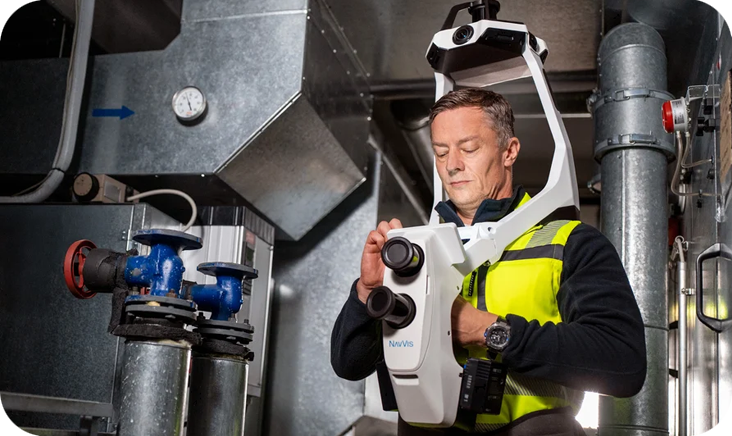

Highest level of detail from a dynamic scanner
True 3mm point cloud resolution, three lidars sensors specifically designed for reality capture, and industry-trusted NavVis software work together to capture exceptional geometric detail – clearly resolving thin pipes, bolts, sharp edges in complex industrial and technical environments for LOD350+ Scan-to-BIM and demanding engineering workflows.
Triple-LiDAR Architecture
Three LiDAR sensors deliver the high point density needed to resolve fine details and sharp features, capturing complex geometry from multiple angles in a single pass for cleaner, more complete point clouds.

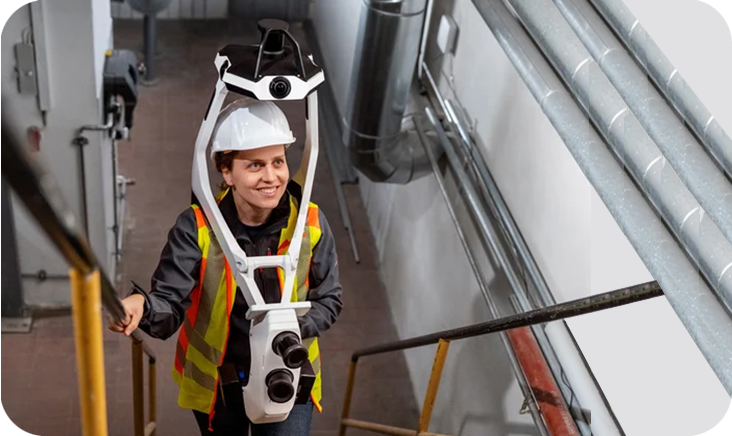

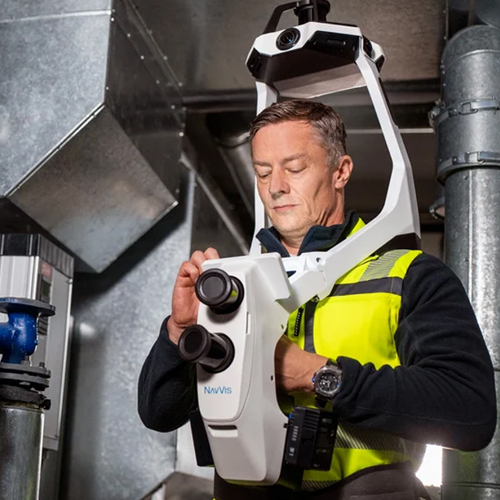

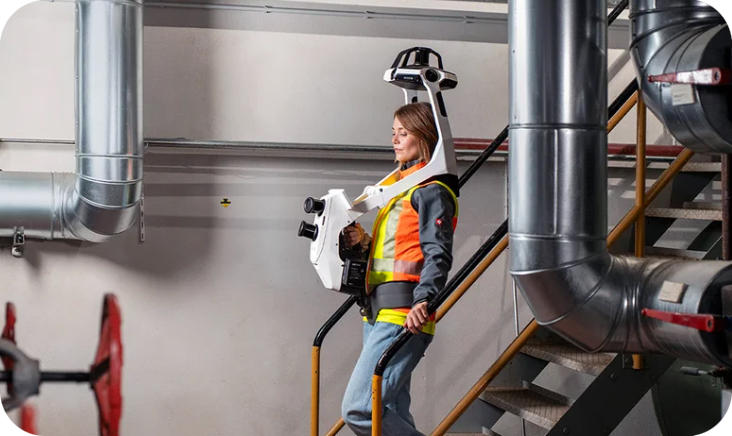

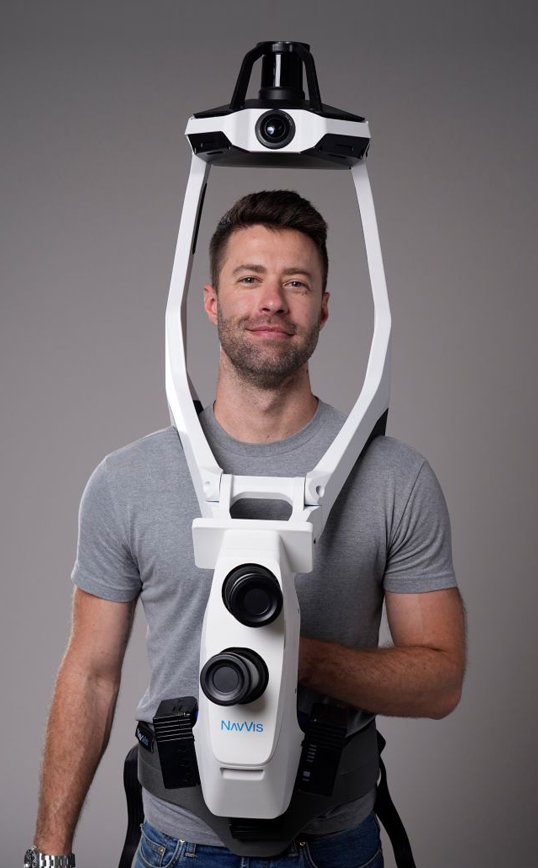

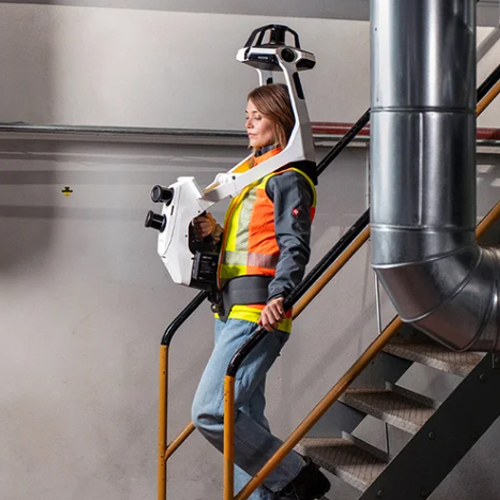

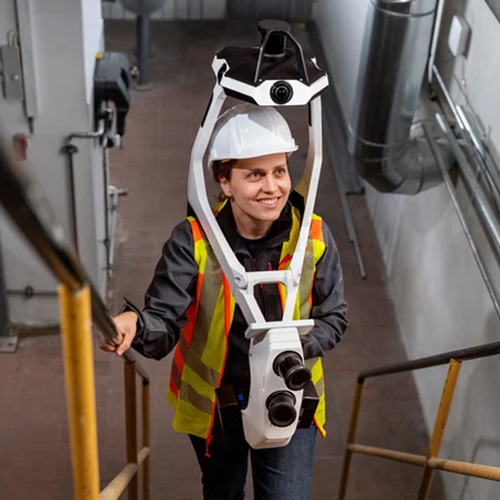

Wearable Reality Capture for High-LOD Projects
Cover more ground in less time. Move freely through complex environments while continuously capturing the high-detail data you need for demanding projects.
Proven NavVis Technology
Trusted NavVis SLAM software delivers the positioning reliability and consistent data quality demanding projects require.
One Connected NavVis Workflow
Go from capture to deliverable in one connected workflow with IVION. The NavVis ecosystem brings capture, processing, collaboration and integration together – reducing manual steps and keeping projects moving efficiently from site to final output.
How it works
Software
NavVis VLX 4 is optimised to work seamlessly with IVION Processing and IVION, helping teams move efficiently from capture to processed data, access, and deliverables. Capture reliable as-is and as-built data with minimal effort, then process, manage, and share it in one connected workflow.
Related media
Videos
Images
Request more Info | Get a Quote
Please complete the form below to submit your quote request.
Quote Form
Reality Capture for Everyday AEC Documentation
When reality capture becomes part of the everyday AEC workflow, the real value isn’t just the scan, it’s having reliable information about the building or site, when and wherever the project team needs it.
Continue readingNavVis announces the new CLX
NavVis sets a new standard for capturing and documenting, with their recently launched NavVis CLX handheld LiDAR scanner.
Continue readingNavVis IVION

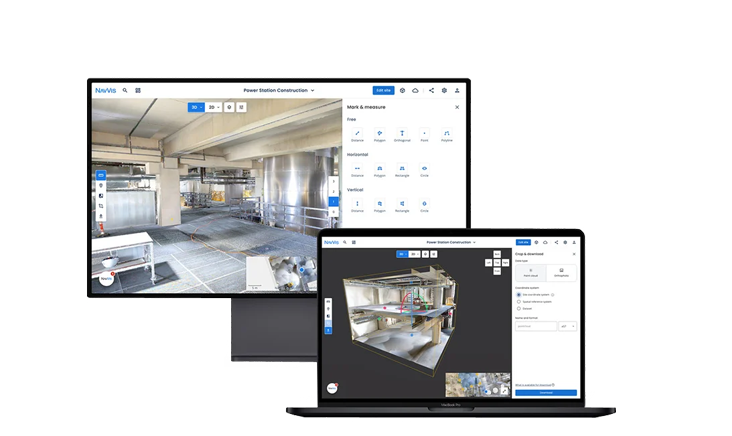

NavVis IVION
Scanning Software
Turn your site data into decisions, today
A platform that transforms high-precision reality capture data into clear, collaborative digital spaces that everyone, regardless of their role, can access, understand, and act on.
Across planning, construction, and industrial operations, teams face delays, misalignment, and budget overruns due to siloed tools, outdated drawings, and inaccessible site data. RFIs multiply, assumptions go unchecked, and rework becomes inevitable. On top of this, traditional CAD and BIM tools are often limited to specialists, leaving critical stakeholders out of the loop.
IVION pairs millimeter-accurate scan data with an intuitive browser-based platform, and transforms reality capture into a shared, real-time environment where everyone – from field teams to planners – can explore as-is conditions, overlay design models, verify installations, flag issues, and collaborate remotely. Additionally, with its built-in workflows, keeping IVION data up to date is fast and simple.
In an era of tighter timelines and shrinking resources, IVION delivers the clarity to act now — before the next assumption becomes a costly mistake.
Streamline processes with NavVis software
No matter your industry or role, IVION features and integrations are built to seamlessly support and fit into every stage of a workflow, making daily tasks more efficient and impactful. Discover how NavVis software simplifies, streamlines, and improves essential processes.
Data Processing
Quick, seamless processing of real-world conditions for trusted results.
Data Management & Synchronisation
One tool to accurately align, refine and manage point clouds and panoramas.
Scan-to-BIM
Capture and convert real-world site conditions unto accurate, BIM-ready documentation – streamlining planning, modelling and collaboration.
Model Validation
Visually compare 3D models, point clouds and panoramic images within IVION.
Site Management
Plan projects with confidence using up-to-date site information. Provide teams with digital views of sites – accessible anytime, from anywhere.
Conceptual Planning
A shared source of truth for smarter conceptual planning – built on real-world data.
Construction Verification
Accelerate documentation, reduce re-work and streamline construction verification with NavVis reality capture technology and virtual site access.
Asset Tagging & Visualisation
Turn facilities into data-rich environments where assets, issues and insights are visible, actionable and always up to date.
Integrate it into your workflow
IVION integrates with industry-leading third-party solutions to simplify workflows and maximise project efficiency.
IVION supports the following point cloud formats:
Related media
Video
Request more Info | Get a Quote
Please complete the form below to submit your quote request.
Quote Form
NavVis CLX
NavVis CLX
Mobile LiDAR Scanning System
Everyday reliability
An agile, handheld reality capture device purpose-built for high-volume, everyday documentation workflows.
NavVis CLX helps teams capture and deliver spatial data at scale when simplicity, reliability, and ROI matter.
Unique Benefits
One site visit. Complete data. Job done.
Dual LiDAR plus live coverage feedback on the integrated screen means you validate completeness before you leave site. Revisits are the most expensive line item in a capture project – NavVis CLX is built to eliminate them
Get it done the first time. Every time.
Fast to learn and reliable in the hands of anyone in your team. Remove the limit on how many projects you take on. Free your senior people from time-consuming site visits and scale throughput without scaling the team.
Draw on ground truth. Not guesswork.
Clean point clouds you can use for LOD200 scan-to-CAD/BIM. No double walls, tilts, or spray artifacts. Draw on ground truth, not data you have to interpret or second-guess. Fewer cleanup hours mean more projects with the same headcount – and consistent quality your clients can trust.
From site visit to deliverable. One workflow.
Capture on site, process the data in the cloud, and access it all in one place from anywhere. No other tools in between. Download the .e57 file or an orthophoto for drawing in CAD tools or stream the point cloud straight into Revit. Always work on the reliable ground truth. And because IVION is a digital copy of the site, the whole project team can explore, measure, plan, and verify. It is more than just a scanner. It is a workflow.
1. Built-in display for live 2D and 3D feedback
2. USB-C charging port
3. Quick-release pole and mounting adapter
4. 2x high FOV LiDAR sensors
5. 3x 12MP cameras for panoramic images
6. Easy-grip handle for best ergonomics
CUSTOMER PERSPECTIVES
Trusted by Reality Capture Professionals
See how industry professionals are using NavVis technology to capture reliable data faster, more efficiently and with greater flexibility.
LE34
“
“NavVis technology is fast, and we achieve a high level of quality – more than enough for most projects.”
PLOWMAN CRAVEN
“
“For wayfinding, indoor capture, and general site understanding, the data quality is more than fit for purpose.”
NavVis CLX Features
Trusted, high-quality data
NavVis CLX produces clean point cloud data suitable for documentation, measurement, and downstream modeling workflows. Teams can work with dependable scan data while reducing cleanup effort.
Simple to learn, operate and scale
NavVis CLX is fast to learn, easy to deploy, and built for repeatable workflows. Integrated 2D and 3D feedback helps teams onboard operators quickly and scale capture across more projects.
Built for the real world
Lightweight, ergonomic, and flexible, NavVis CLX supports reliable documentation in occupied or confined areas. A quick-release pole and mount adapter enables access into hard-to-reach spaces and the included harness helps operators work comfortably during longer capture sessions.
Reliable, complete data capture
Dual LiDAR architecture, live visualization of coverage (2D and 3D) help operators validate capture completeness while scanning. The result is with less uncertainty and fewer costly revisits.
Purpose-built
NavVis CLX is designed for repeatable, high-frequency documentation workflows such as area referencing, site assessment, quantity surveying support, and LOD200 scan-to-CAD/BIM.
Efficiency beyond capture
Together with IVION Processing and IVION, NavVis CLX supports an efficient workflow from capture to processing, data access, collaboration, and deliverables.
NAVVIS CLX
Ready to See What NavVis CLX Can Do for Your Team?
Speak to the BuildingPoint SA team about your requirements and discover how NavVis CLX can make reality capture faster, simpler and more efficient.
Get a Quote
Talk to our NavVis specialists
How it works
Software
NavVis CLX is optimised to work seamlessly with IVION Processing and IVION, helping teams move efficiently from capture to processed data, access, and deliverables. Capture reliable as-is and as-built data with minimal effort, then process, manage, and share it in one connected workflow.
Together, NavVis CLX and IVION provide an end-to-end reality capture solution for everyday documentation, area referencing, and site assessment, and reliably support LOD200 Scan-to-CAD/BIM workflows. This combination helps teams reduce manual effort, support collaboration, and deliver consistent spatial data at scale.
Related media
Videos
Images
Request more Info | Get a Quote
Please complete the form below to submit your quote request.
Quote Form
Frequently Asked Questions
What is a mobile LiDAR scanner?
A mobile LiDAR scanner is a portable device that captures accurate 3D spatial data while moving through an environment. It uses SLAM technology to generate point cloud data in real time without the need for static setups.
What is the NavVis CLX used for?
The NavVis CLX is used for reality capture, surveying, construction documentation, and creating digital twins. It is ideal for scanning indoor environments and complex spaces quickly and efficiently.
How accurate is the NavVis CLX?
The NavVis CLX delivers a processed data accuracy of up to 8 mm.
What is the difference between a mobile LiDAR scanner and a static scanner?
A mobile LiDAR scanner like the NavVis MLX allows users to capture data while walking through a site, making it faster and more flexible. Static scanners require multiple setups and are better suited for fixed, high-precision scans.
Is the NavVis CLX suitable for construction and AEC projects?
Yes, the NavVis CLX is suitable for construction and AEC projects, but its role is strictly defined by the required Level of Detail (LOD) and the specific stage of the project.
Tekla PowerFab
Software for steel fabricators made simple
Tekla PowerFab lets you make better decisions, eliminate errors and deliver quality on time.
Tekla PowerFab is a comprehensive software suite developed by Trimble to serve as a Management Information Solution (MIS) for steel fabricators. It provides an all-in-one centralized hub that connects estimating, production control, purchasing, and project management operations.
By offering real-time data visibility across the entire project lifecycle, Tekla PowerFab helps fabrication shops minimise errors, optimise materials, and automate workflows.
Unleash the power of truly connected steel fabrication management
Tekla PowerFab is a comprehensive software suite that provides a systematic, collaborative approach for managing your fabrication. Developed specifically for steel fabricators, it delivers a smooth, continuous, and real-time flow of information on projects from start to finish.
Complete and connected steel fabrication management
Estimate
Use our accurate and reliable estimation program to bid on more projects and with more confidence.
Manage projects
Bring your schedules, job progress, drawing control, and change management together in one straightforward system.
Nesting
Reduce waste and only spend money on the materials you need with a built-in material optimisation engine: create cut lists.
Purchasing
Make purchasing material for your jobs easier with our digital requisitions and purchase ordering system.
Inventory control
Regain control of your yard and maximise material usage with automated inventory management.
Production control
Plan, manage and track your entire fabrication with our user-friendly and comprehensive production control interface.
Shop floor
Record your fabrication progress in real-time and with full traceability through every step of your workshop.
Shipping
Ensure materials are delivered to the site on time with shipping planning and tracking tools.
Dashboards
Monitor productivity and efficiency levels in your workshop in real-time with our interactive dashboards.
Why Tekla PowerFab?
Connect and share with ease
Model-derived data ensures error-free purchasing and fabrication, providing a single source of information to align all of your departments.
Simple and user-friendly
Consistent user interfaces make learning and implementation easy.
Make key decisions, anywhere
By utilising the most current information, you can make highly informed and effective decisions. With safe and secure mobile tools, you can work on the move.
Traceability and quality
Comprehensively track quality assurance inspections and materials within the connected inventory and production systems.
Connect and share with ease
Model-derived data ensures error-free purchasing and fabrication, providing a single source of information to align all of your departments.
Robust tools to empower everybody involved with steel fabrication
More accurate estimates, better project management, more efficient production, improved inventory control and procuring the right materials at the right time make Tekla PowerFab an indispensable tool.
For Estimators
Enjoy efficient model-based estimating workflows or intuitively input data for manual estimates. Quickly create estimates and work with the confidence that costs are covered, and your bid is solid, accurate, and competitive. Make informed and precise estimates with an up-to-date database of supplier pricing and delivery details.
For Project Managers
A comprehensive set of project management tools help you anticipate and solve problems before they appear. Stay up-to-date on project profitability by tracking estimates versus actual costs at any time. Collaboration and communication become easier through consistent use of the same model and format from estimation to construction. What's more, teams can access project documentation and reports from anywhere at any time.
For Production Managers
Balance your workshop capacity and optimise your production schedule across all projects with ease. Enjoy the benefits of running a paperless workshop for real-time control and visibility. Your entire staff can use mobile tools for viewing work orders and cut lists and updating production status as they go.
For Purchaser
Reach peace of mind by using a powerful, purpose-built solution that makes your work error-free. Optimize material according to your company standards or situation. The automated process provides purchase documentation that includes all information needed for material tracking and quality assurance. History data is saved to learn for the next project.
Powerful integration with software and equipment
Tekla PowerFab offers an open interface and is designed to interact and exchange data with various software systems and technologies. You can also build your own productivity tools using the Tekla PowerFab Open API™ programming interface for seamless data transfer. Interact and exchange data with various software systems and technologies
Tekla PowerFab 2026 empowers your shop floor’s ability to get the right work done and validate it, simplifying compliance and ensuring quality.
Related media
Video
Request more Info | Get a Quote
Please complete the form below to submit your quote request.
Sales Consultant – Tekla Structures Software
An exciting career opportunity for a Tekla Structures Software Sales Consultant who is passionate about transforming the efficiency of structural design consultancies through the latest analysis and design software technologies.
Continue reading
